Rotary-Die-Head-Blown-Film-Machine
  • Product Info
  • Product name : Rotary-Die-Head-Blown-Film-Machine
  • Product Catalog : Film Blowing Machine
  • Contact Detail
  • Tel : 0086-577-66881211 / 0086-577-66881311
  • Fax : 0086-577-56848008
  • E-mail : sales@kingdommachine.com
  • MSN : kingdombillwang@hotmail.com
  • Skype : kingdombillwang
+ View Full-size Image
Product Description

It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.

Main Technical Variables:

Model SJ-B50 SJ-B55 SJ-B60 SJ-B65-1
Screw Diameter 50mm 55mm 60mm 65mm
Screw Ratio(L/D) 28:1 28:1 28:1 28:1
Screw Speed 10-100r/min 10-100r/min 10-100r/min 10-100r/min
Power of Main Motor Max Output 11Kw 35kg/h 15Kw 50kg/h 15-18.5Kw 65kg/h 18.5-22Kw 80kg/h
Max.Folding Width of Film 600mm 800mm 1000mm 1200mm
Single-sided Thickness of Film 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm
Total Power 22Kw 26Kw 30Kw 36Kw
Weight of Machine 2T 2.3T 2.6T 3T
Overall Dimensions 4*1.8*3.6m 4.2*2*4m 4.6*2.3* 4.2m 4.8*2.5*4.5m

OPTIONAL EQUIPMENT:

1) AUTO LOADER
2) EMBOSSING ROLLER
3) FILM SURFACE TREATER
4) AIR COMPRESSOR
5) MECHANICS SCREEN CHANGER
6) UP AND DOWN

7) DOUBLE-LIP AIR RING

8) AIR SHAFT

Recommended Related Products
double head blown film machine
- Double Head Blown Film Machine

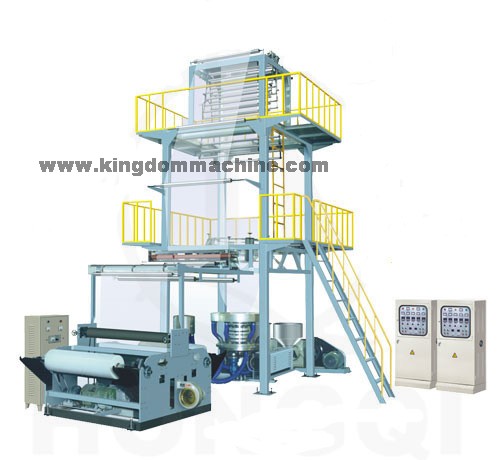

three layer blown film machine
- Three Layer Blown Film Machine

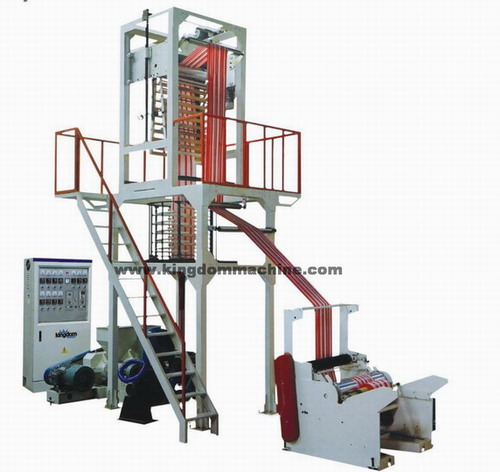

double color blown film machine
